Testing a capacitor with a multimeter is a crucial skill for anyone working in electronics, whether you are a hobbyist, technician, or engineer. Understanding how to assess the functionality of a capacitor can save time, resources, and prevent further damage to electronic components. This guide aims to demystify the process and provide you with the knowledge needed to accurately test capacitors using a multimeter.

Capacitors play a vital role in electrical systems, storing and releasing electrical energy when needed. They come in various shapes, sizes, and capacitance values, making them versatile components in circuits. However, like any electronic component, capacitors can degrade over time or fail altogether. Knowing how to test a capacitor with a multimeter can help you determine whether a capacitor is functioning correctly or if it needs replacement.

In this comprehensive guide, we will explore the step-by-step process of testing a capacitor, what readings to expect, and how to interpret those readings. We will also address some common questions and troubleshooting tips that can further enhance your understanding. With this knowledge, you will be better equipped to diagnose and resolve issues related to capacitors in your electronic devices.

What Is a Capacitor?

Before diving into testing methods, it's important to understand what a capacitor is and how it functions within an electrical circuit. A capacitor is a passive electrical component that stores energy in an electric field. It's widely used in various applications, including filtering, timing, and energy storage.

Why Should You Test a Capacitor?

Capacitors can fail due to age, excessive voltage, heat, or physical damage. Testing a capacitor helps in identifying potential issues before they lead to circuit malfunctions. Here are some reasons to consider testing a capacitor:

• Preventing circuit failures
• Maintaining device performance
• Identifying the need for component replacement

How to Identify Capacitors?

Before testing, you need to locate and identify the capacitor you want to test. Capacitors are typically marked with their capacitance value (in microfarads, or µF), voltage rating, and sometimes polarity. Polarity is crucial for electrolytic capacitors, as reversing the connections can damage them.

What Tools Do You Need to Test a Capacitor?

To perform a capacitor test, you will need:

• A multimeter (preferably a digital one with capacitance measurement capability)
• A screwdriver (to access the capacitor if necessary)
• Safety goggles (for personal protection)

How to Test a Capacitor with a Multimeter?

Testing a capacitor requires a systematic approach. Follow these steps:

1. Power Off the Device: Ensure that the power to the circuit is completely turned off and unplugged.
2. Discharge the Capacitor: Use a resistor to safely discharge the capacitor to avoid any shock. Connect the resistor across the terminals for a few seconds.

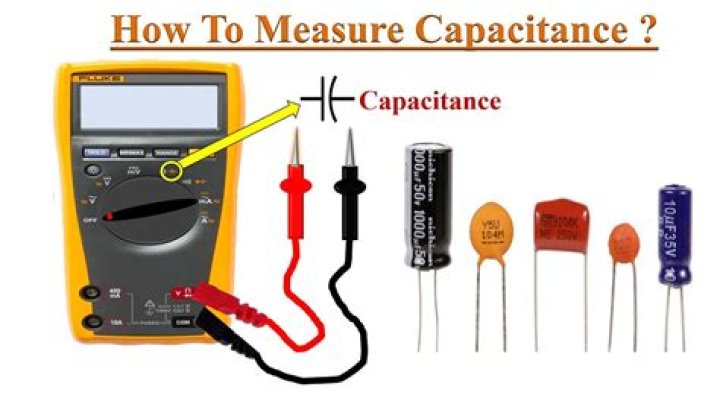

3. Set the Multimeter: Turn the multimeter dial to the capacitance measurement setting (usually marked with "C" or "µF").
4. Connect the Probes: Attach the multimeter probes to the capacitor terminals, ensuring correct polarity for polarized capacitors.
5. Read the Measurement: Observe the reading on the multimeter. Compare it with the capacitor's rated value.

What Do the Readings Mean?

When testing a capacitor with a multimeter, it's important to understand the readings:

• If the reading is close to the rated capacitance value, the capacitor is functioning properly.
• If the reading is significantly lower, the capacitor may be faulty.
• If the multimeter shows "OL" (overload), the capacitor might be shorted.
• Capacitors that have a very high resistance may be leaky or damaged.

What Are Some Common Issues with Capacitors?

Capacitors can experience a range of issues, including:

• Leakage: Indicates internal damage and may require replacement.
• Open Circuit: The capacitor has failed completely, shown by infinite resistance.
• Short Circuit: The capacitor allows current to pass through unwantedly, damaging other components.

When Should You Replace a Capacitor?

Knowing when to replace a capacitor is as important as testing it. Consider replacing a capacitor if it:

• Has visible physical damage (bulging, leaking, burnt marks)
• Fails the multimeter test
• Is older than the expected lifespan (usually 5-10 years for electrolytic types)

Conclusion

In conclusion, mastering how to test a capacitor with a multimeter is an essential skill for anyone involved in electronics. By understanding the principles behind capacitors, recognizing the tools required, and following the testing procedure, you can effectively determine the health of a capacitor. Regular testing can help maintain the performance of your electronic devices and prevent costly repairs.
